The Foil Drive Assist MAX is our flagship model, delivering maximum power, runtime, thrust, and versatility for all foiling enthusiasts. Suitable for beginners and experienced riders, the Assist MAX enhances your adventures in all disciplines of foiling. Discover the ultimate foiling experience with the Assist MAX!
The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!
Das Set enthält alles, was Sie brauchen
Turn your existing hydrofoil and board into an electric assisted foiling machine
- Universeller Mastadapter, der für 99 % der verfügbaren Folienmasten geeignet ist
- v2 Motor mit 20cm Kabellänge als Standard. Die Kabellängen sind leicht austauschbar für die ultimative Anpassung mit dem neuen abnehmbaren V2 Motor Kabel
- Bluetooth-Verbindung mit der Foil Drive Mobile App
Wählen Sie einfach Ihre gewünschte Batteriegröße zwischen den
- MAX Power
- MAX Sport
- MAX Travel
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

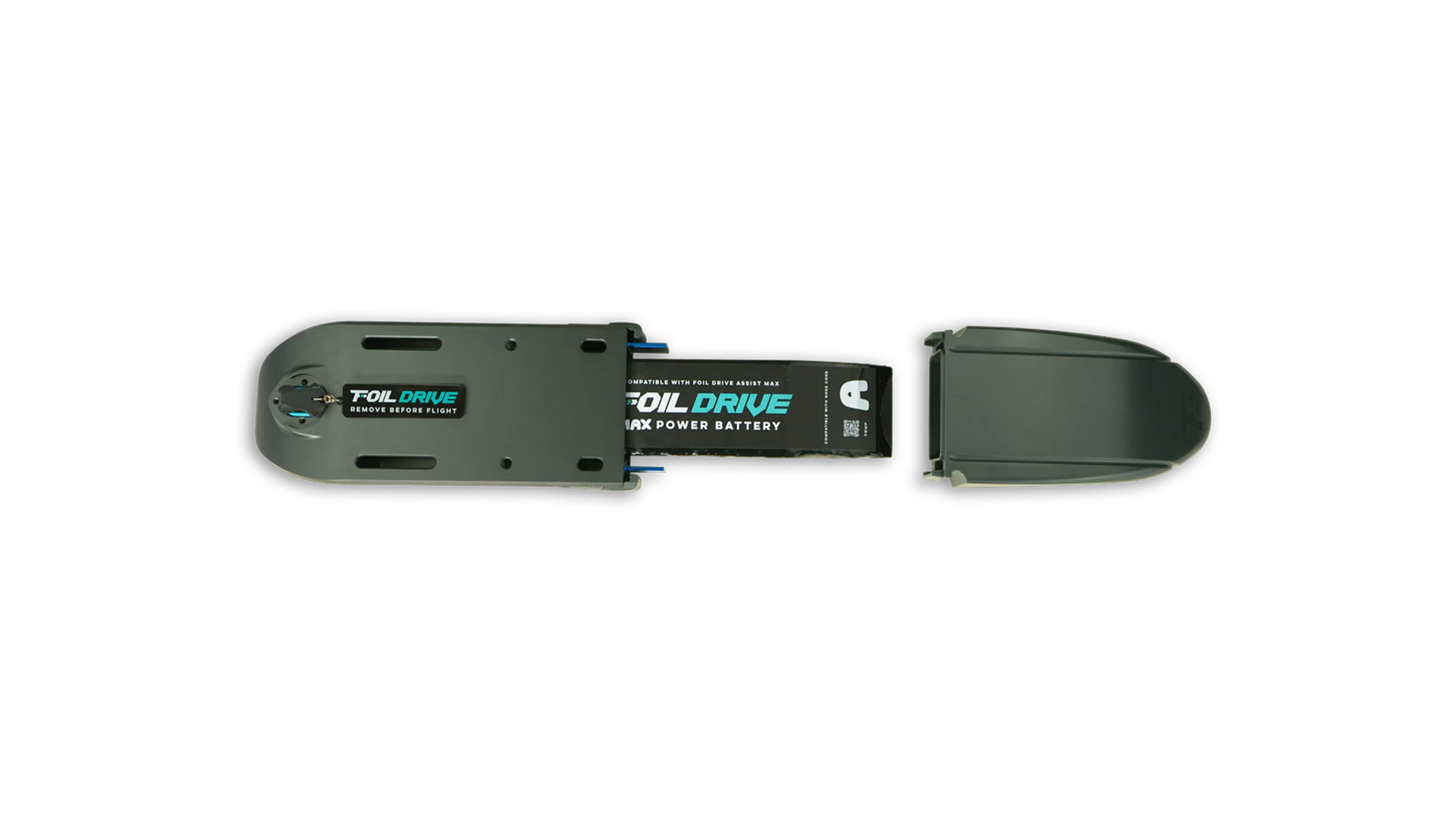

Who rides the MAX
It doesn't matter if your surfing, downwind foiling, winging or in
flat water, the Assist MAX is for everyone! The MAX system offers longer
runtime and is recommended for those wanting a diverse foiling
experience.
- Learn to Foil
- Flatwater Foiling
- Surf, Downwind, Wing or Pump with longer runtime
- Adaptable into all disciplines
- Also recommended for heavier riders

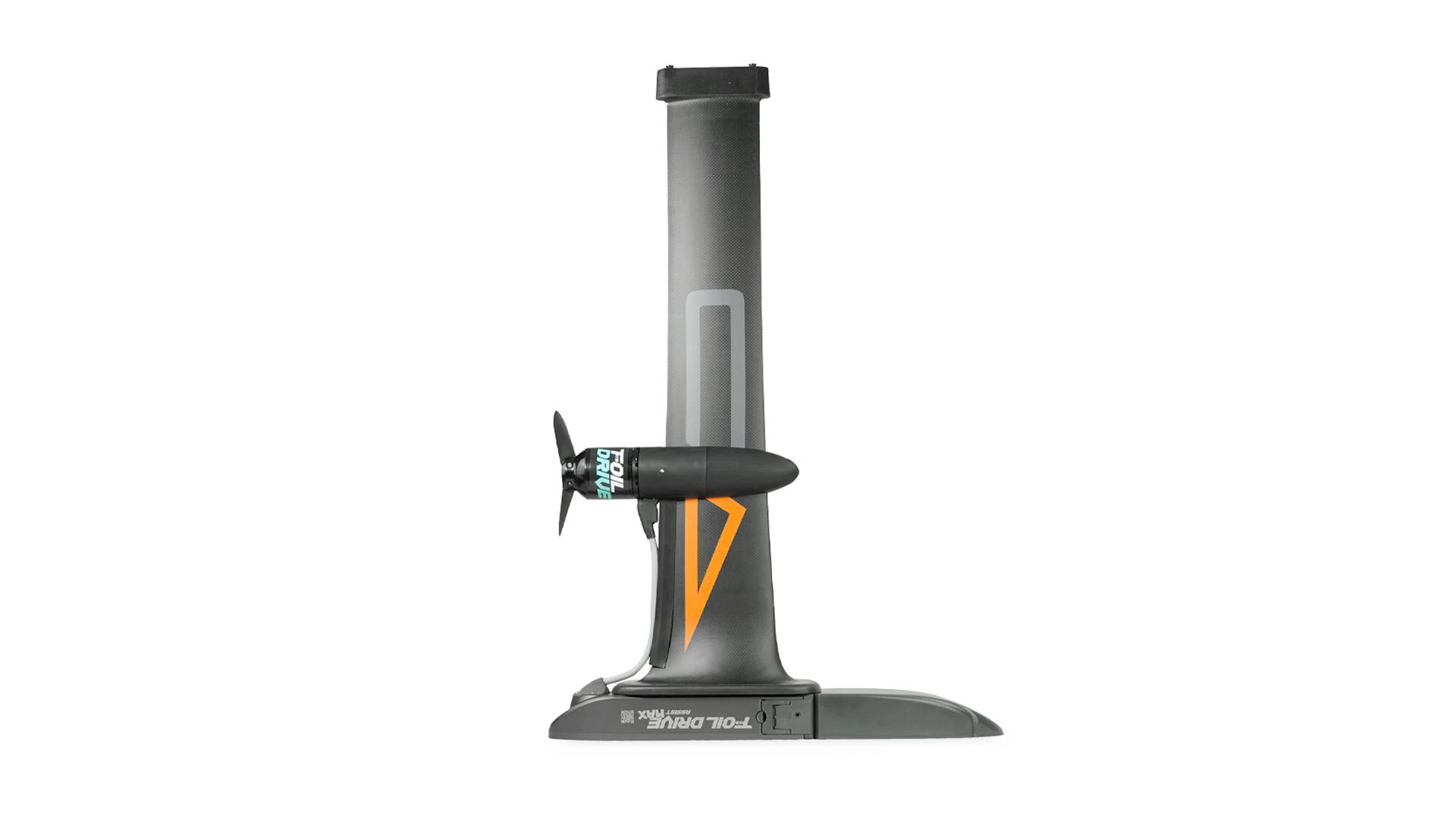

Installation auf jedem Foil Board & Mast
Gen2 Foil Drive Systeme werden zwischen der Mastplatte und dem Board montiert. Da die
Foil-Mastschienen universell sind, passen sie auf jedes Board! Verwenden Sie einfach
die mitgelieferten T-Muttern und längeren Mastbolzen. Lege dein
Gen2 Foil Drive zwischen deine Ausrüstung für eine optimale Gewichtsverteilung und eine
saubere Oberfläche Board .
Hinweis: Boards mit Carbon Tracks benötigen möglicherweise eine zusätzliche externe Antenne

Technische Daten
Maximum Thrust: 27.5kg (60.6lbs) with Three Blade Alloy Props
Total Install Weight: 4.8-5.8kg (10.5-12.7lbs) depending on battery
Max. Dimensions: L525 x W125 x H50mm
Min. Dimensions: L415 x W125 x H50mm
Operating Voltage: 40V
Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
Recharge Time: Appx. 2-3.5hrs (Power Battery)
Batteries: IP68 rated dust and water resistant.

Abnehmbare Motoren
Mit drei einfachen
Schrauben kann der Motorstecker entfernt werden, so dass der Fahrer
seine Motorhöhe durch den Wechsel zwischen verschiedenen Kabellängen ändern kann.
Mit der Option, Ihren eigenen Folienmast zu verwenden, oder einer vollständig integrierten Option, gibt es mehr Möglichkeiten, Ihr Setup zu tunen als je zuvor!







FOIL DRIVE ASSIST MAX
The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

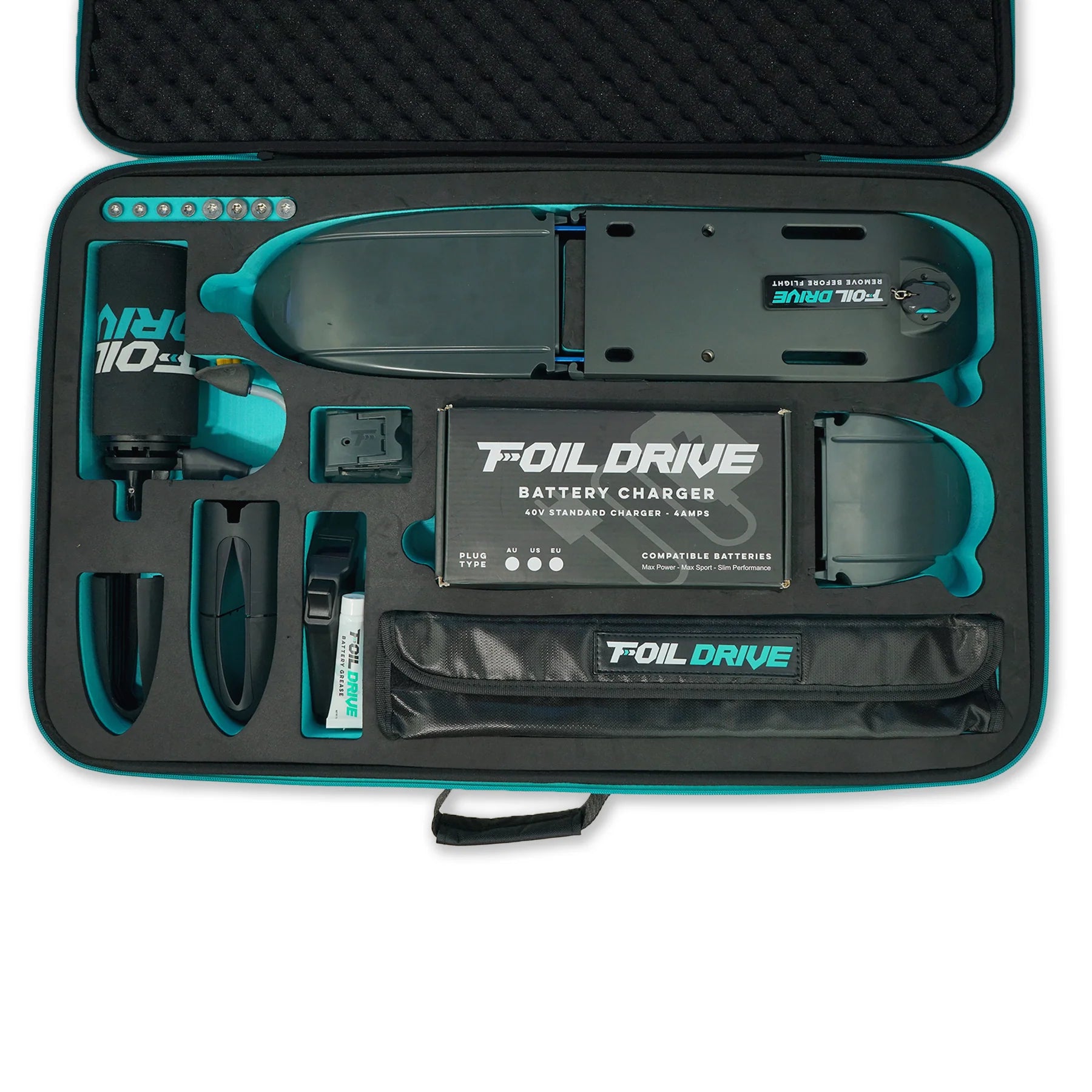

The kit includes everything you need:
Turn your existing hydrofoil and board into an electric assisted foiling machine
- Universeller Mastadapter, der für 99 % der verfügbaren Folienmasten geeignet ist
- v2 Motor mit 20cm Kabellänge als Standard. Die Kabellängen sind leicht austauschbar für die ultimative Anpassung mit dem neuen abnehmbaren V2 Motor Kabel
- Bluetooth-Verbindung mit der Foil Drive Mobile App
Simply choose your desired battery size between the:
- MAX Power
- MAX Sport
- MAX Travel
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
Optionen auswählen

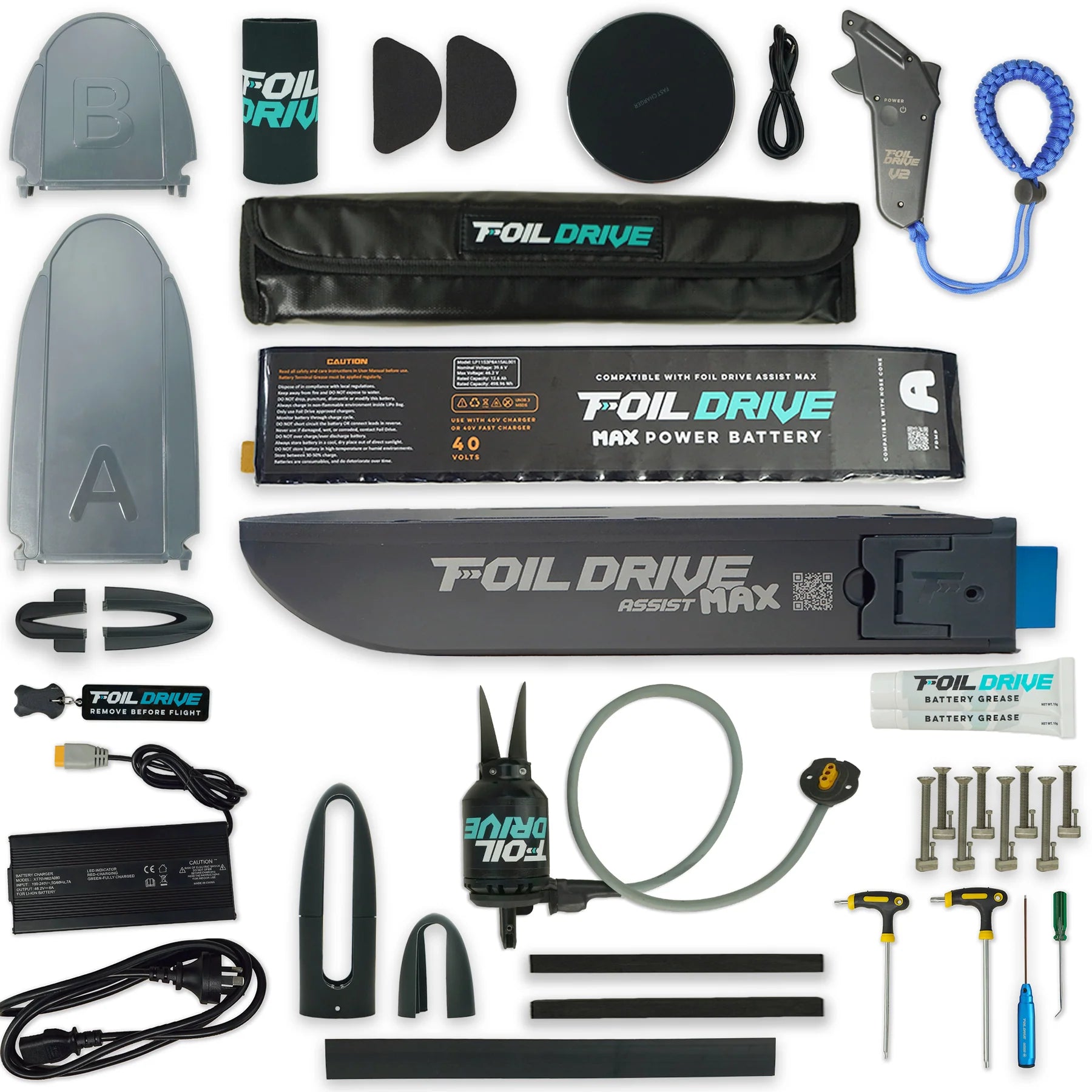

*Choice of Battery with Lipo Bag*
V2 Motor with 20cm cable now included as standard.
UNIVERSAL MAST ADAPTOR NOW INCLUDED!
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm

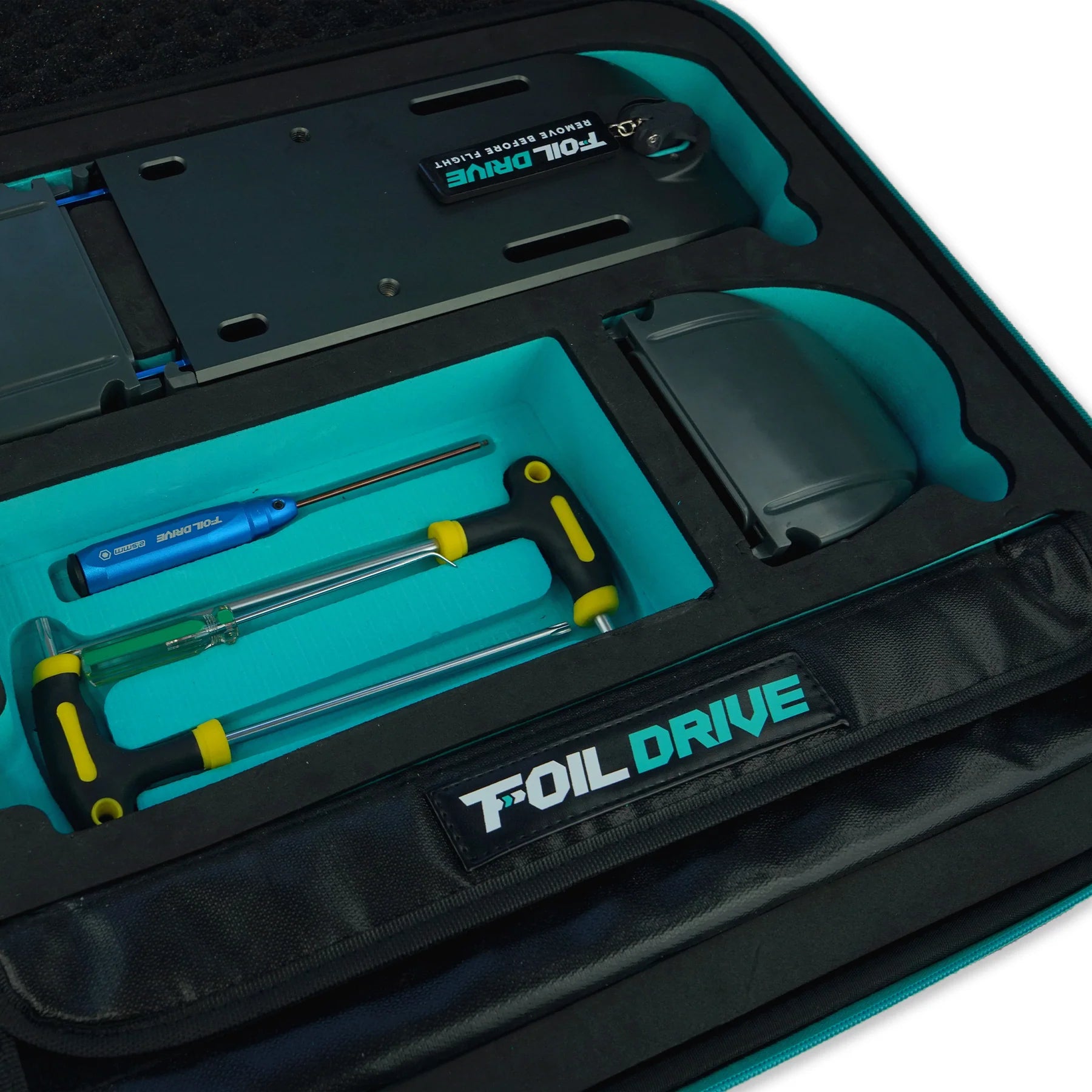

Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

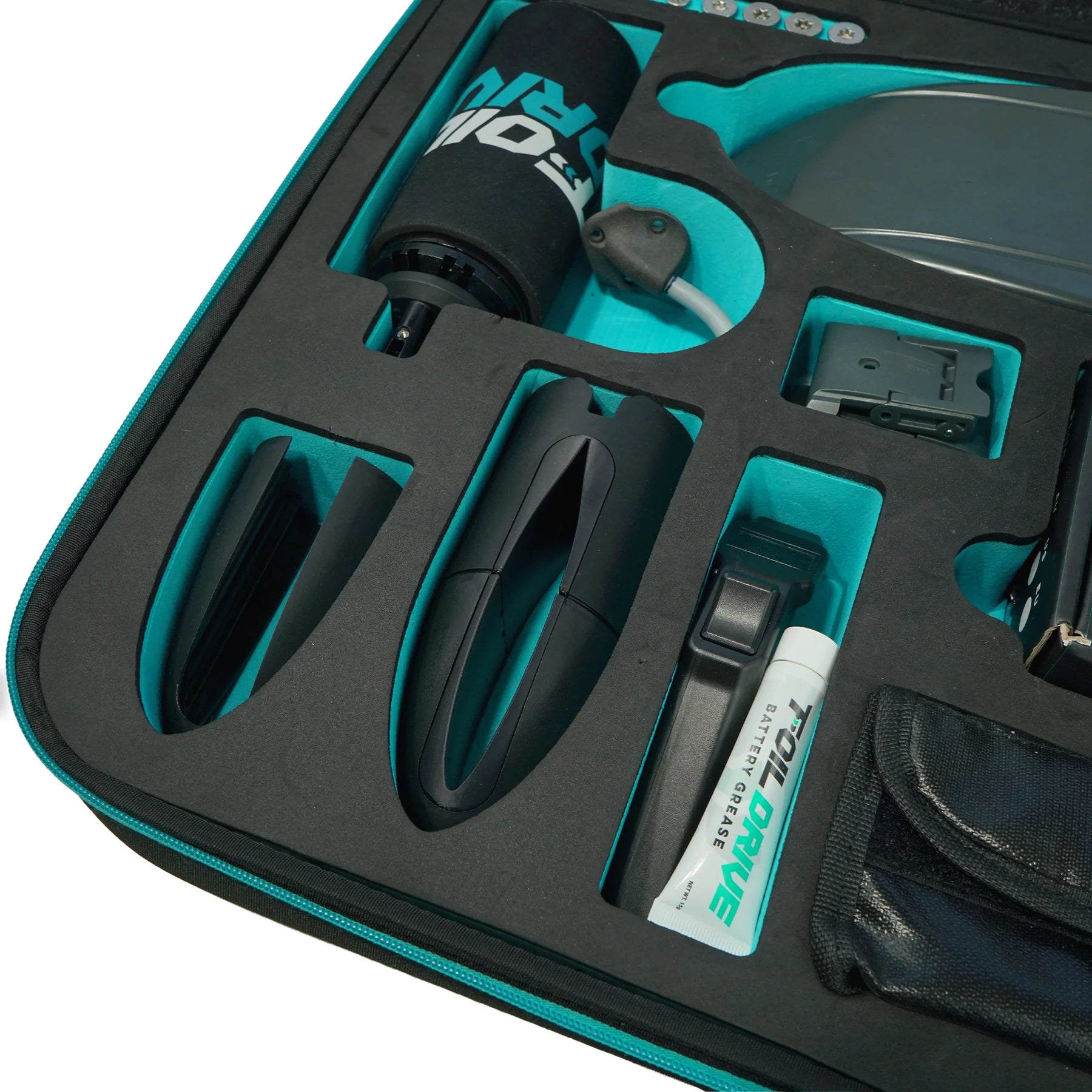

Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

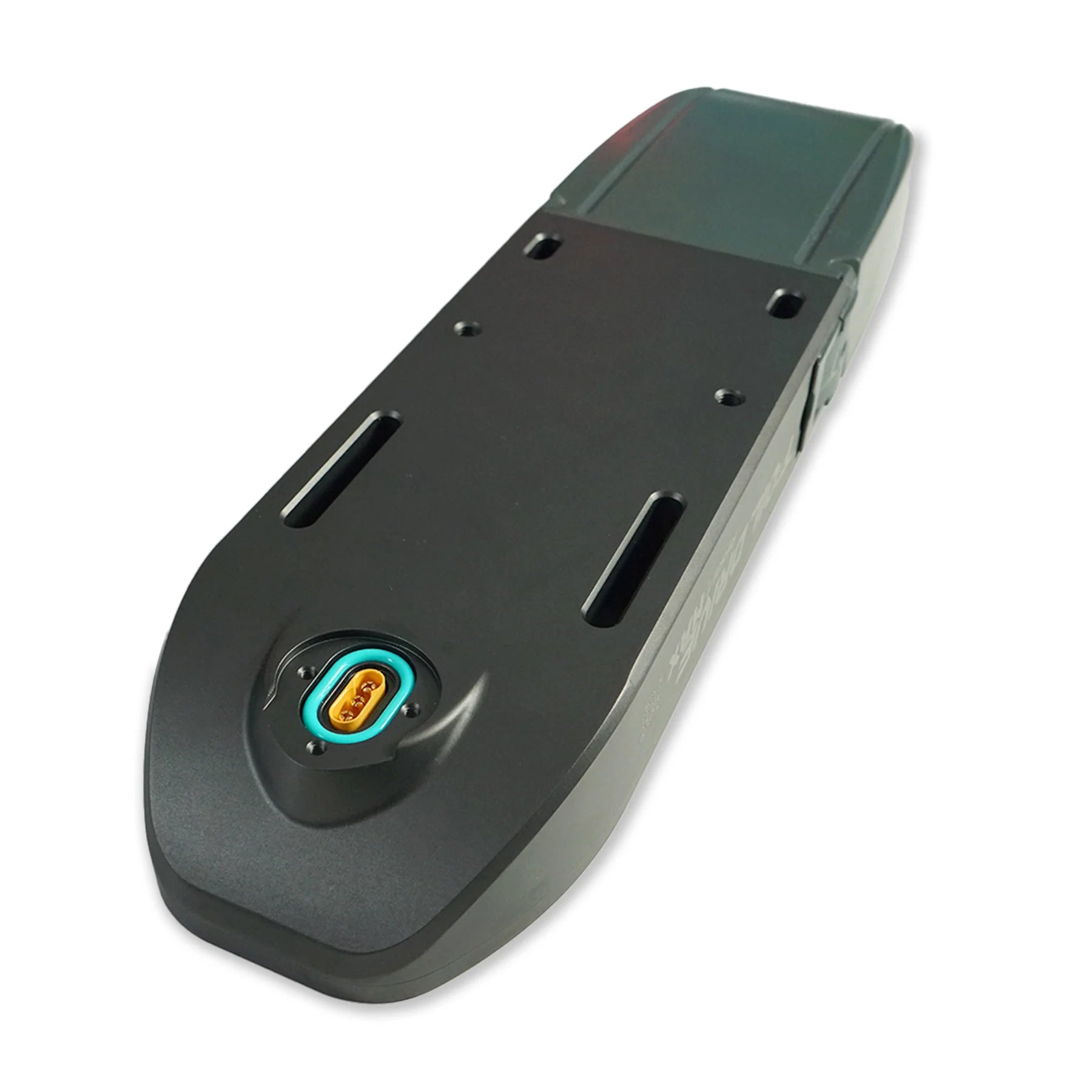

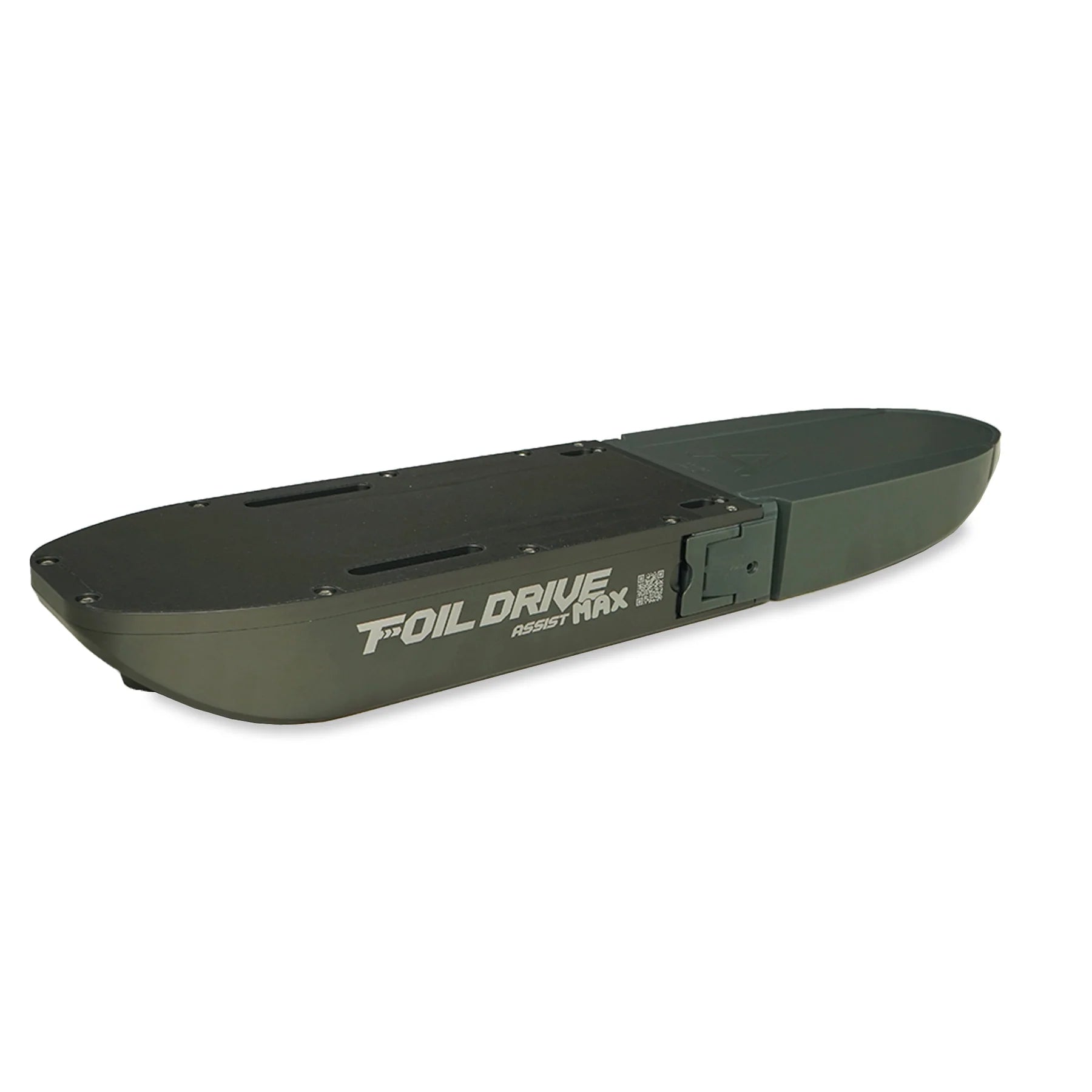

MAX Power Battery
MAX Sport Battery
MAX Travel Battery
Universal Motor Systems for Gen2
Integrated Masts
Max Thrust: 27.5kg (60.6lbs)
Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)
Dimensions with Long A Nose Cone: L525 x W125 x H50mm
Dimensions with Short B Nose Cone: L415 x W250xH50mm
App compatibility: Foil Drive app, Android and IOS
